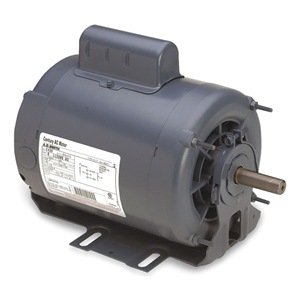

Motor, Cap St, 1 HP, 1725/1140, 208-230V, 56

Motor, Cap St, 1 HP, 1725/1140, 208-230V, 56

Belt Drive Motor, Capacitor Start, 1, 1/3 HP, Nameplate RPM 1725/1140, Voltage 208-230, 1 Phase, Frame 56, Open Dripproof, Full Load Amps 6.3-6.0/3.3-3.8, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 12-11/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In. Open Dripproof MotorsFor use with belt-drive applications, including furnace blowers, exhaust fans, industrial blowers, and ventilators. 2-speed motors are for use in diminishing-torque air-moving applications such as belt- or direct-drive fans and blowers. 4UB57, 4UB47, and 4UB98 include 5/8"-key shaft adapter. 4UB57 is notched for 48 or 56 NEMA frame mount.UL Recognized and CSA Certified.Max. ambient: 40 C Thermal protection: auto Rotation: CW/CCW
